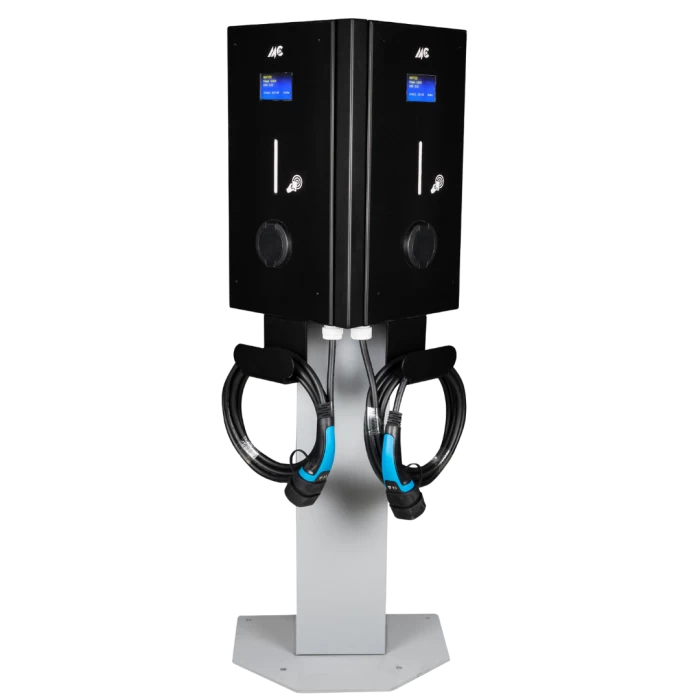

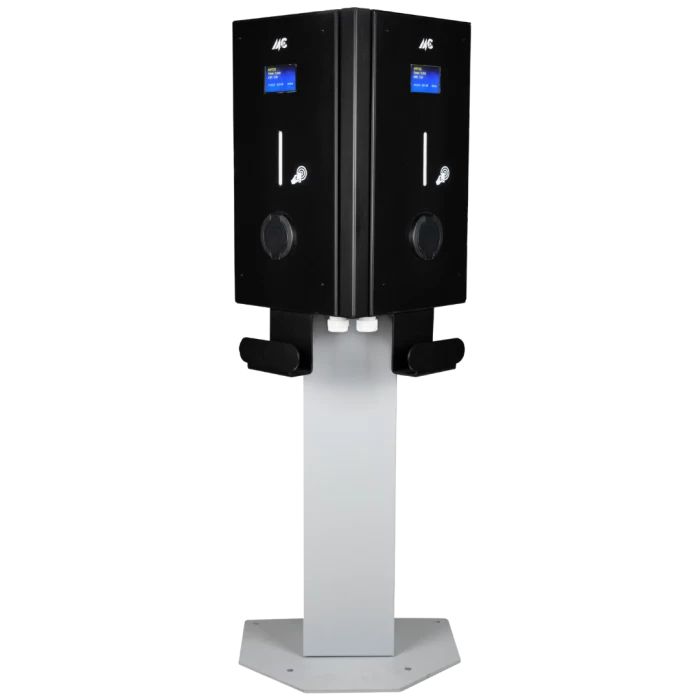

PRISMA 2x22kW (Wall base upgradabe to ground base)

Three-phase AC Charger 2x22kW wall mounted, with two Type 2 charging outlets (sockets) with cap, maximum power 44kW, on a floor stand (column), WiFi & Ethernet, RFID, RCD Type B, Surge Protection Type 2, Communication protocol, MCCB, 2 4.3" LCD screens, high lightning protection, overvoltage, undervoltage, overheating protection system, RCD type B leakage current protection with AC 30mA & DC 6mA leakage current detection per charging output. Ground loss detection. Ability to manage Active Power. Power Built-in MID power meter per charging output.

3720.00€ Price
Price including additional options
Select model:
Select color:

Additional options:

Quantity:
Buy

Telephone orders: (+30) 213 0287107-108

  • AC Output Current: 64Α / phase
  • AC Input Voltage: 400VAC
  • Power: 44 KW max (22 KW in each output)
  • AC Input Current: 32 A / phase in each output
  • Differential protection: Overvoltage (OVP) & Undervoltage (UVP) Protection
  • IP rating: ΙΡ55
  • Mechanical Impact: ΙΚ10
  • WiFi: Yes
  • Charging ports: 2
  • Placement: Wall base & Ground base
  • Charger dimensions: 510x605x410 (width x height x depth) Each
  • Base: Optional
  • Charging time: 1.5-2 hours
  • Warranty: 2 Years
Πιστοποιητικό Αυθεντικότητας EMW

Why choose this charger?

It has full built-in insurance protections, no need for an additional sub-panel, no reduction in power when charging 2 cars at the same time, charging at +50 C (in the shade), high IP55 waterproof protection, high protection against cyber attacks, ergonomic and spatial placement. With the certified MID meter it is suitable for professional use. Strong anti-vandal protection (IK10).
