ORION 7C

ORION 7C

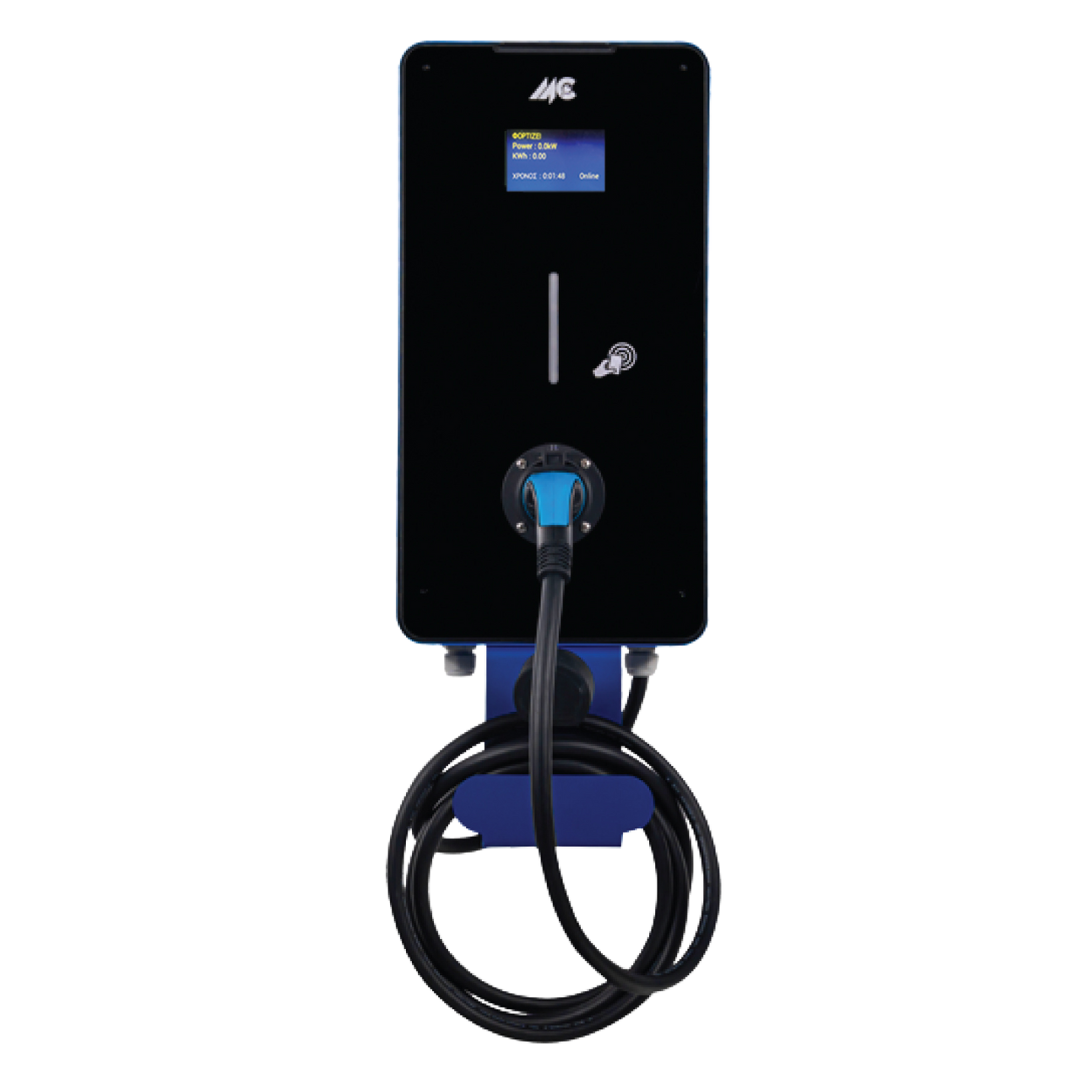

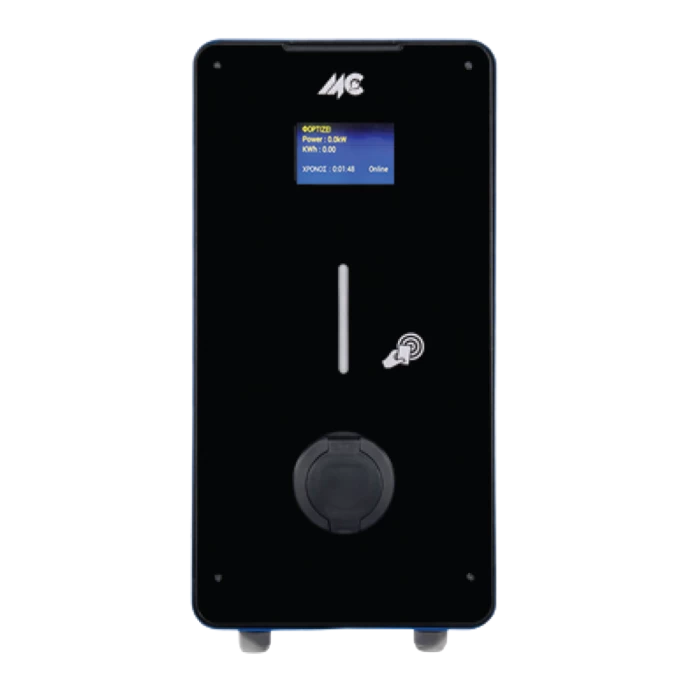

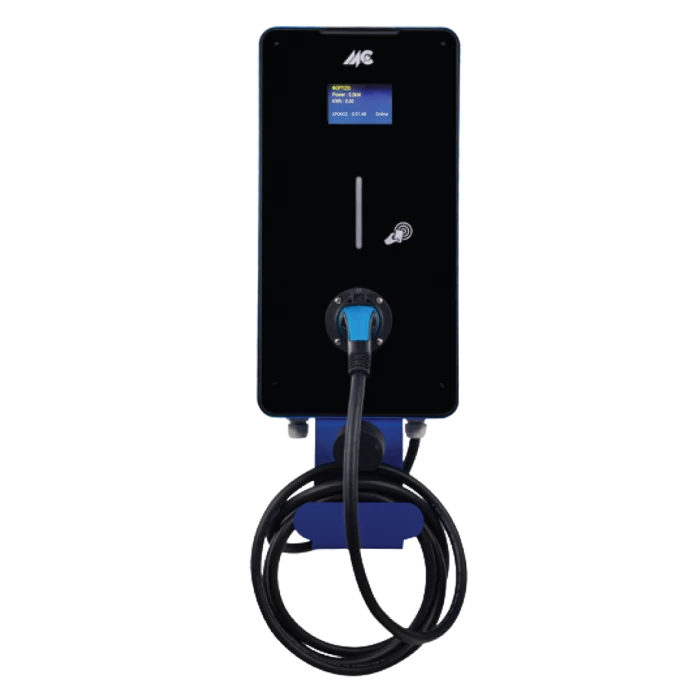

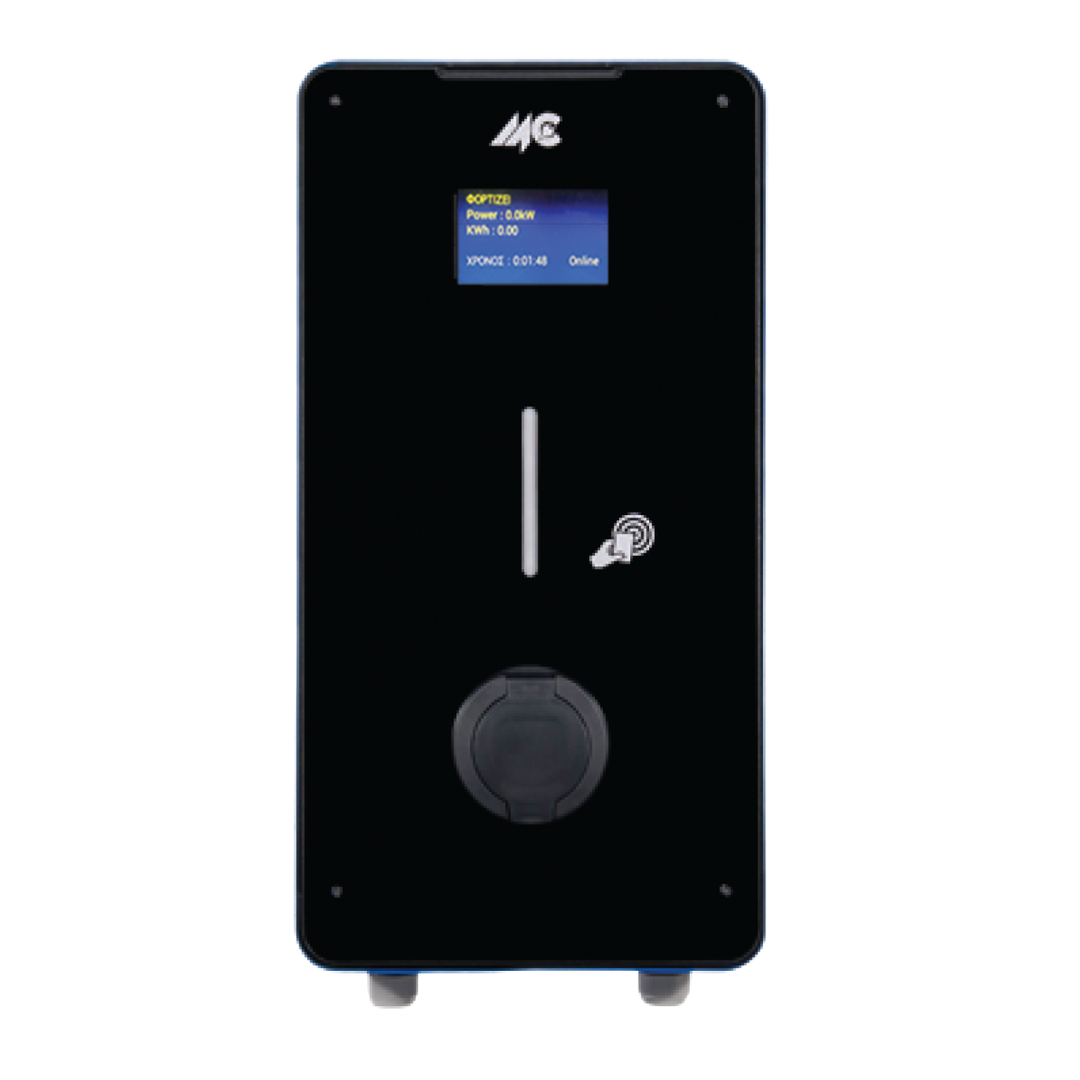

Single-phase AC Charger 7kW, with charging outlet, , with charging outlet (socket) Type 2 with cover, WiFi & Ethernet, RFID, RCD Type B, Surge Protection Type 2, Communication protocol, MCCB, 2 LCD screens 4.3", high lightning protection, overvoltage, undervoltage, overheating protection system, RCD type B leakage current protection with AC 30mA & DC 6mA leakage current detection per charging output. Ground loss detection. Active Power management capability. Built-in MID energy meter.

2356.00€ Price
Price including additional options
Select model:
Select color:

Additional options:

Quantity:
Buy

Telephone orders: (+30) 213 0287107-108

  • AC Output Current: 32Α
  • AC Input Voltage: 230VAC
  • Power: 7 KW max
  • AC Input Current: 32 A
  • Differential protection: Overvoltage (OVP) & Undervoltage (UVP) Protection
  • IP rating: ΙΡ55
  • Mechanical Impact: ΙΚ10
  • WiFi: Yes
  • Charging ports: Τype 2 socket-outlet or Mode 3 tethered cable with Type 2 outlet (5m)

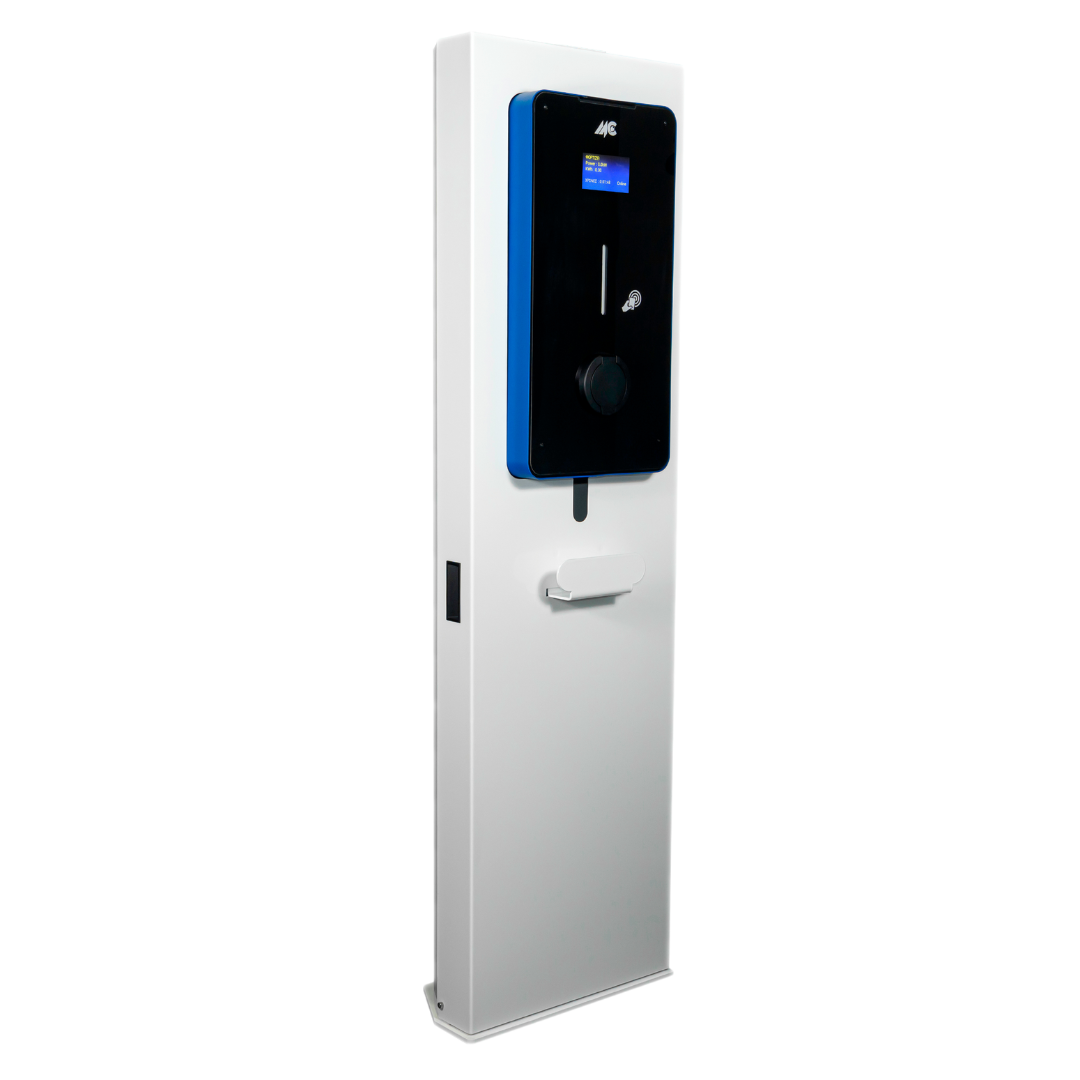

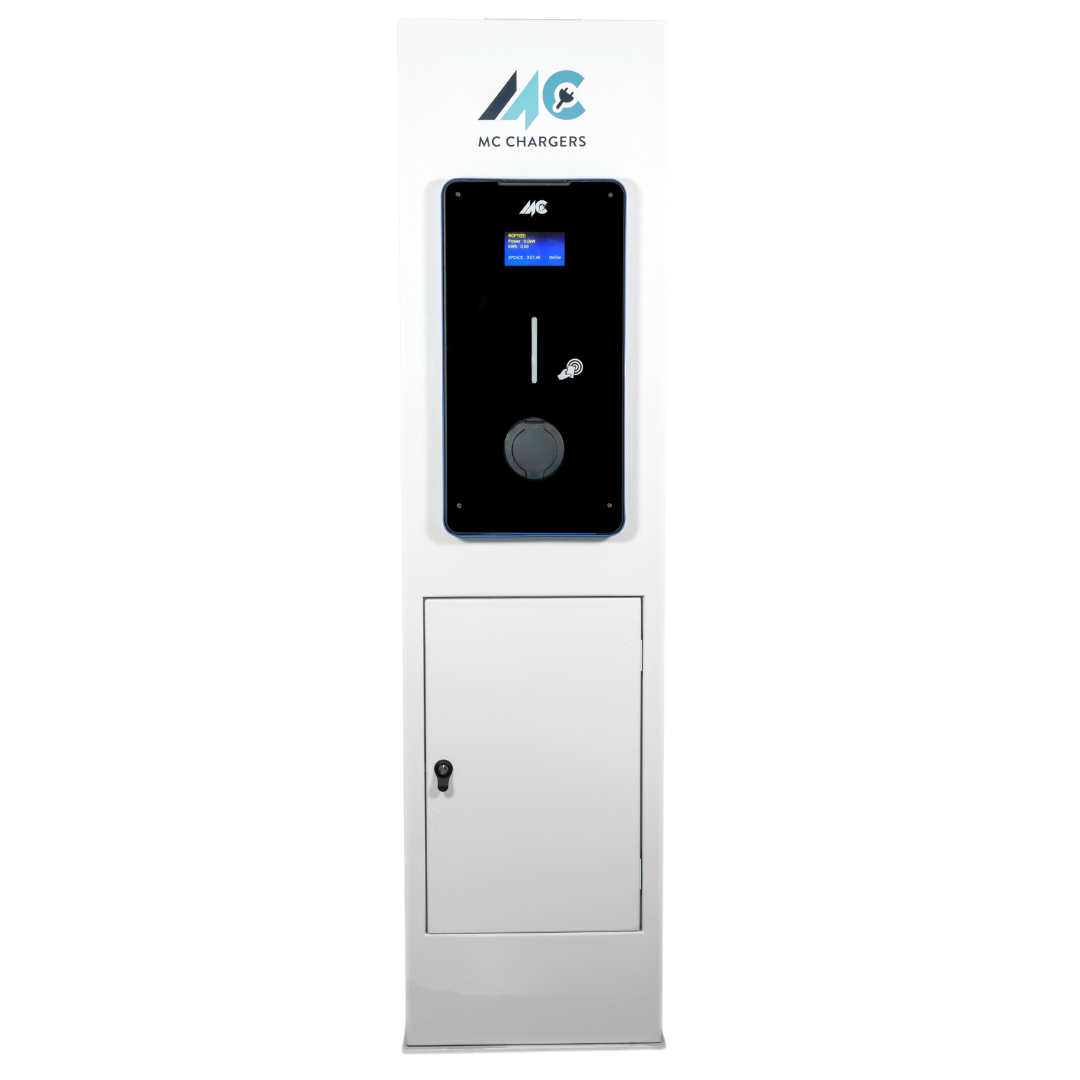

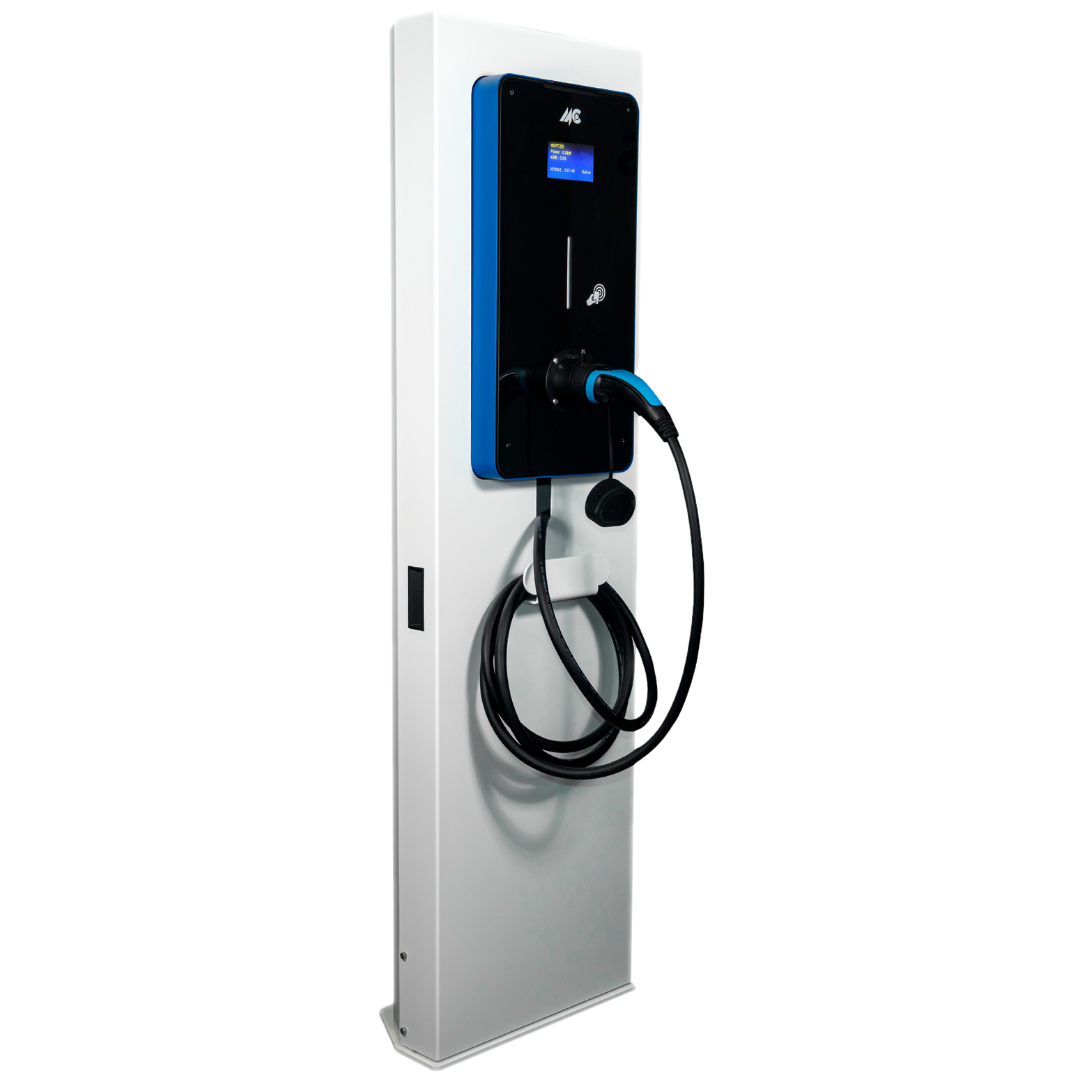

  • Placement: Wall base & Ground base
  • Charger dimensions: 300x575x165mm (width x height x depth)
  • Base: 440x1534x165mm
  • Wall base weight: With tethered cable 16,6kg , With socket outlet 14,9kg
  • Ground base weight: With tethered cable 58,3kg , With socket outlet 56,7kg
  • Charging time: 6-7 hours
  • Warranty: 2 Years
Πιστοποιητικό Αυθεντικότητας EMW

Why choose this charger?

It has full integrated insurance protections, no additional sub-panel is needed, charges at +50 C (in the shade), high IP55 waterproof protection, high protection against cyber attacks, ergonomic and spatial placement. With the certified MID meter it is suitable for professional use. Strong anti-vandal protection (IK10).
