Home / Charging Stations / Commercial Charging Stations /

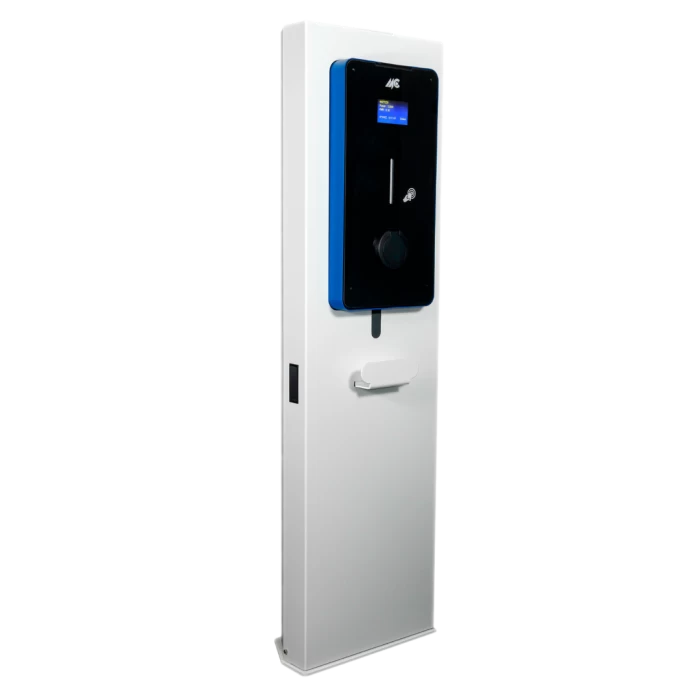

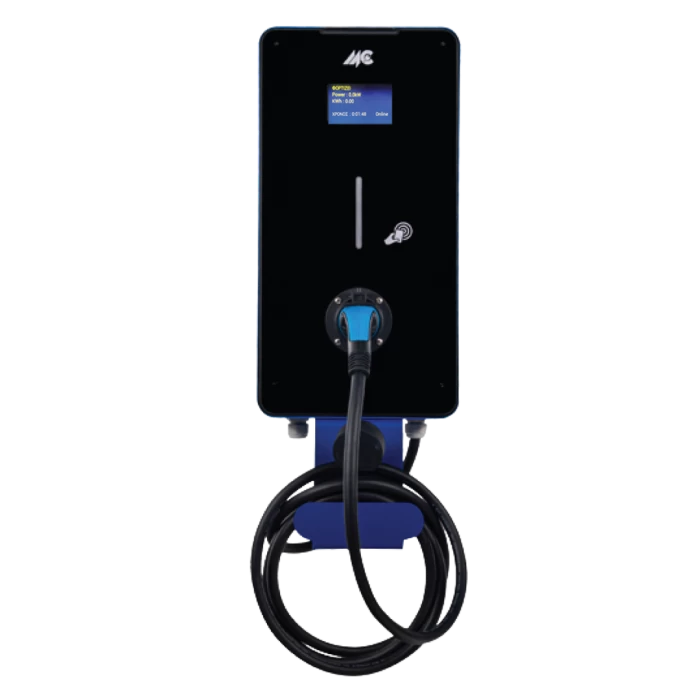

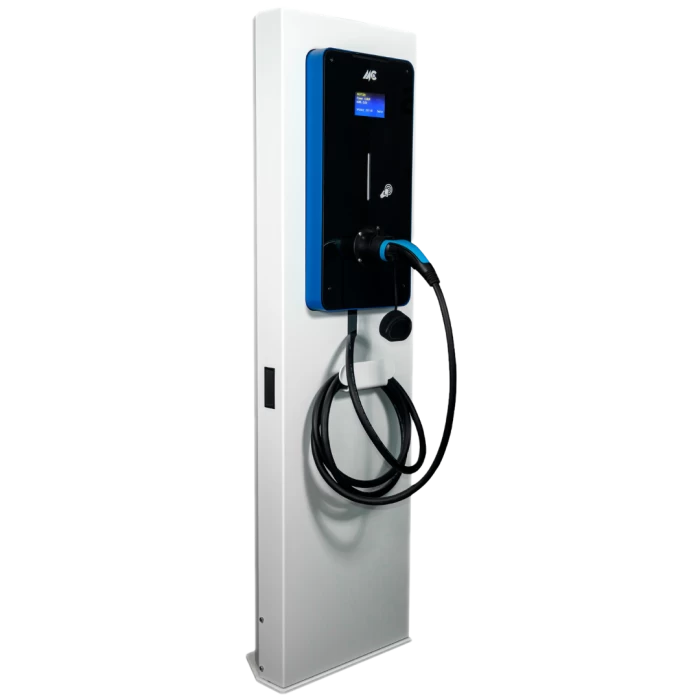

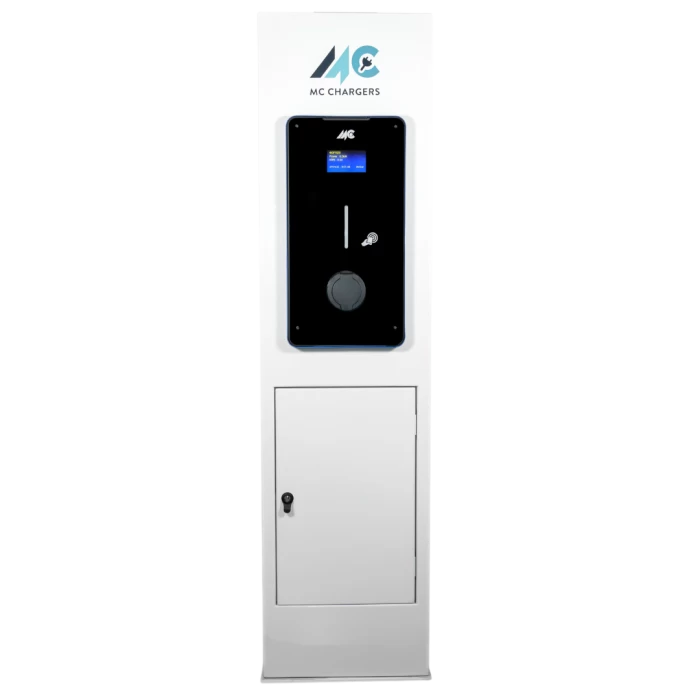

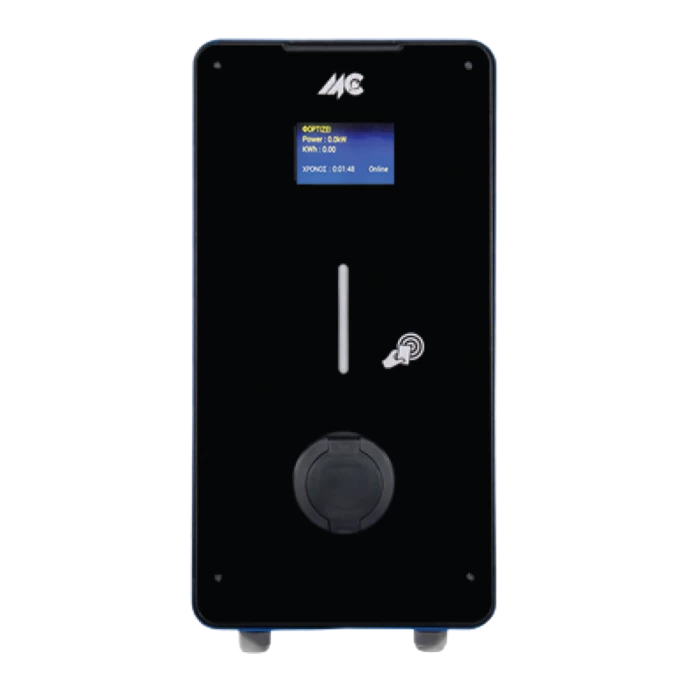

ORION 22C

Three-phase AC Charger 22kW, with charging outlet, wall-mounted, with Type 2 charging outlet (socket) with cover, WiFi & Ethernet, RFID, RCD Type B, Surge Protection Type 2, Communication protocol, MCCB, 2 LCD screens 4.3 ", high lightning protection, overvoltage, undervoltage, overheating protection system, RCD type B leakage current protection with AC 30mA & DC 6mA leakage current detection per charging output. Ground loss detection. Active Power management capability. Built-in MID energy meter.

2914.00€ Price
Price including additional options
Select model:
Select color:

Additional options:

Quantity:
Buy

Telephone orders: (+30) 213 0287107-108

  • AC Output Current: 32Α / phase
  • AC Input Voltage: 400VAC
  • Power: 22 kW max
  • AC Input Current: 32 A / phase
  • Differential protection: Overvoltage (OVP) & Undervoltage (UVP) Protection
  • IP rating: ΙΡ55
  • Mechanical Impact: ΙΚ10
  • WiFi: Yes
  • Charging ports: Τype 2 socket-outlet or Mode 3 tethered cable with Type 2 outlet (5m)
  • Placement: Wall base & Ground base
  • Charger dimensions: 300x575x165mm (width x height x depth)
  • Base: 440x1534x165mm
  • Wall base weight: With tethered cable 18,9kg , With socket outlet 17,2kg
  • Ground base weight: With tethered cable 60,6kg , With socket outlet 58,9kg
  • Charging time: 1,5-2 hours
  • Warranty: 2 Years
Πιστοποιητικό Αυθεντικότητας EMW

Why choose this charger?

It has full integrated insurance protections, no additional sub-panel is needed, charges at +50 C (in the shade), high IP55 waterproof protection, high protection against cyber attacks, ergonomic and spatial placement. With the certified MID meter it is suitable for professional use. Strong anti-vandal protection (IK10).
